Efficient Production

Digitize Your Patterns with Speed and Accuracy

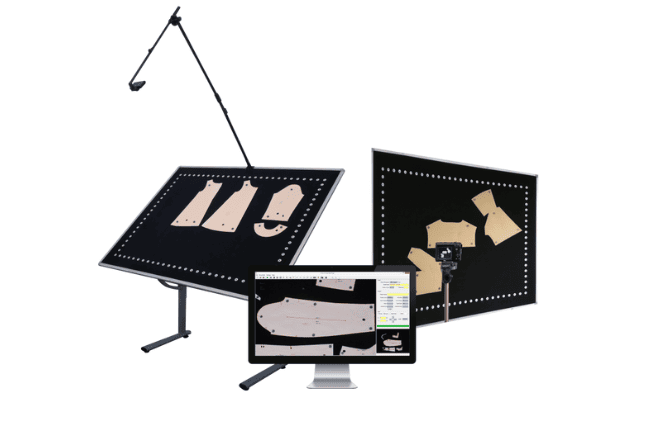

The Velocity V-Shoot is a camera digitizing system designed to convert physical patterns into precise digital files compatible with leading CAD software. Ideal for apparel, furniture and upholstery, automotive interiors, footwear, and technical textiles, V-Shoot helps manufacturers digitize physical patterns quickly while preserving their original dimensions and geometry.

By combining a precision magnetic digitizing board, camera-based capture, and automatic pattern vectorization, V-Shoot streamlines the process of converting physical patterns into editable digital files for design, production, and archiving.

Protect More Than Paper

Every physical pattern represents hours of development, fittings, adjustments, and production knowledge. Losing a pattern can mean losing valuable design history, time, and money.

With V-Shoot, physical patterns can be converted into secure digital assets that can be stored, organized, edited, and accessed whenever production requires them.

Protect Years of Work

Safeguard valuable patterns by creating digital copies that can be stored and backed up, helping protect your pattern library from physical damage, loss, or everyday wear.

Organize Every Style

Build a searchable digital pattern library that keeps styles, components, and production patterns organized and available when needed.

Digitize with Precision

Capture physical patterns accurately while preserving their original dimensions and geometry for use in digital design and production workflows.

Seamless CAD/CAM Integration

V-Shoot supports industry-standard formats like .DXF, AAMA DXF and .PLT, enabling effortless integration with your existing design and production systems.

Compatible with top software platforms including: Gerber, Lectra, Optitex, Audaces, Assyst, Gemini, Tukatech, AutoCAD, SolidWorks, Adobe Illustrator, CorelDraw, and many more used across fashion, footwear, upholstery, and technical industries.

Key V-Shoot Features

The V-Shoot stands out by combining advanced imaging technology, robust file compatibility, and practical features in a compact, easy-to-use design. Here’s what makes it exceptional:

Calibration-Free Technology

V-Shoot uses the reference circles printed on the digitizing board to automatically correct for camera distance, angle, lighting, and optical distortion. No ongoing manual calibration is required, helping maintain consistent digitizing accuracy over time.

Automatic Pattern Digitization

Place the physical pattern on the board, capture the image, and let V-Shoot automatically vectorize the pattern. The system can convert physical patterns into editable digital files in seconds, reducing manual point-by-point digitizing.

High-Precision Pattern Capture

V-Shoot preserves the original dimensions and geometry of physical patterns during digitization. Standard boards under 79 inches can achieve accuracy within 0.039″, while the 35″ × 24″ high-precision board provides accuracy of less than 0.039″.

Fractional Digitizing for Oversized Patterns

V-Shoot can digitize patterns larger than the available capture area using fractional digitizing technology. This allows oversized patterns to be captured in sections and combined into a complete digital pattern.

Flexible Camera Options

V-Shoot can work with different capture configurations, including supported DSLR cameras and iPhone devices. This gives manufacturers flexibility to use existing camera equipment or select a configuration based on their workspace and workflow.

Magnetic Digitizing Board

The V-Shoot board uses magnetic fixation to hold physical patterns securely during capture, eliminating the need for tape and helping operators position pieces quickly and consistently.

Seamless CAD/CAM Integration

V-Shoot exports digitized patterns in industry-standard formats including DXF, AAMA DXF and HPGL, allowing patterns to move directly into existing CAD, design, and production workflows.

Compatible software includes: Gerber, Lectra, Optitex, Audaces, Assyst, Gemini, TukaTech, AutoCAD, SolidWorks, Adobe Illustrator, CorelDraw, and Vetigraph.

Where V-Shoot Fits in Your Workflow

V-Shoot supports pattern digitization across a wide range of manufacturing applications.

Apparel & Garment Manufacturing: Digitize garment patterns, technical apparel, uniforms, prototypes, and production components.
Footwear & Leather Goods: Capture upper components, insoles, templates, leather patterns, and other footwear components.
Automotive Interior Manufacturing: Digitize patterns for seat covers, interior coverings, insulation, trims, and other automotive components.
Furniture & Upholstery Manufacturing: Capture pattern pieces for cushions, upholstery covers, furniture components, and compatible foam applications.
Technical Textiles & Composites: Digitize technical textile patterns and compatible composite templates used in specialized manufacturing.
Military, Defense & PPE: Digitize patterns for protective wear, uniforms, tactical gear, PPE, and other technical textile applications.

Want to See V-Shoot in Action? Send us a sample of your physical pattern and let our team digitize it using V-Shoot. See how quickly and accurately your patterns can be converted into digital files.

Boost Productivity. Eliminate Errors. Go Digital.

V-Shoot simplifies the transition from physical patterns to digital production files, reducing manual digitizing work and helping manufacturers create a more consistent and traceable pattern workflow.

Accelerate Pattern Development
Reduce Manual Digitizing Work
Improve Pattern Traceability
Integrate with Existing CAD Workflows

Large Format Pattern Digitizing: V-Shoot XL

V-Shoot XL is a customizable large-format pattern digitizing solution designed for manufacturers working with oversized physical patterns.

The system combines V-Shoot software with an XL digitizing board, with optional camera configurations based on the customer’s workspace and production requirements.

Customizable XL Board Sizes

Common configurations include:

79″ × 59″ (200 × 150 cm)
94″ × 59″ (240 × 150 cm)
118″ × 59″ (300 × 150 cm)

Custom board sizes are available up to 14.8′ × 7.9′ (450 × 240 cm)

Flexible Board and Camera Configurations

The V-Shoot XL board can be configured according to the available workspace.

Boards can be installed:

On a table
On the floor
Vertically on a wall
At an angle

Camera mounting options can include:

Ceiling
Tripod
Wall-mounted camera arm
Handheld configurations for certain vertical setups

Optimized Optical Correction

The precisely printed reference circles around the V-Shoot board allow the software to correct optical distortions caused by camera distance, angle, lighting, and other capture conditions.

This allows the system to maintain accurate digitization across different board and camera configurations.

Need Help Choosing a Configuration?

Not sure which V-Shoot XL configuration is right for your workspace?

Our team can recommend an appropriate setup based on your available space, board dimensions, camera configuration, and digitizing requirements.

V-Shoot Technical Specifications

Digitizing System: Camera-based pattern digitizing system designed to convert physical patterns into accurate digital files for CAD and production workflows.

Automatic Multi-Pattern Digitizing: With one camera and one click, users can automatically digitize multiple pattern pieces in a single capture.

Pattern Editing: Once digitized, patterns can be edited directly in the V-Shoot software. Users can add or modify notches, smooth vector lines, add drill holes and points, merge mirrored pieces, and delete unwanted elements.

Calibration: One-time calibration only. The V-Shoot system uses the reference circles on the magnetic board to automatically compensate for optical distortion and maintain accurate digitization without requiring continuous manual recalibration.

Supported File Formats: DXF, AAMA DXF, and PLT, allowing digitized patterns to be transferred into compatible CAD and production systems.

Compatible CAD Software: Gerber, Lectra, Optitex, Audaces, Assyst, Gemini, TukaTech, AutoCAD, SolidWorks, Adobe Illustrator, CorelDraw, Vetigraph, and other compatible systems.

Pattern Materials: V-Shoot is suitable for paper, cardboard, and thicker pattern materials, providing flexibility for different pattern-making and production environments.

Digitizing Board Options: Available in different working-area configurations depending on the maximum size of the pattern or patterns to be digitized:

35″ × 24″
59″ × 47″
73″ × 53″
80″ × 40″
112″ × 53″

XL Board: Customizable XL boards are available up to 177″ × 94″. Preferred XL configurations include 79″ × 59″, 94″ × 59″, and 118″ × 59″, with custom dimensions available according to the customer’s pattern size and workspace requirements.

Board Color: Available in white or black. The recommended color depends on the pattern material and color to provide optimal visual contrast during image capture.

Camera Options: V-Shoot can be configured with a dedicated camera or compatible customer-supplied device. Depending on the mobile device, the latest iPhone or Samsung Galaxy models may be used as the capture camera.

Camera Mounting Options: The camera or mobile device can be handheld or mounted using a tripod, monopod, wall-mounted support, or ceiling-mounted configuration, depending on the workspace and board installation.

Board Installation: Boards can be installed flat on a table, floor, or cutting machine, or configured vertically on a wall or at an angle. Camera placement can be adapted to the selected installation, including wall, ceiling, tripod, or handheld configurations.

Large-Format Installation: V-Shoot XL boards are typically installed horizontally for large pattern handling, but vertical and angled configurations are also available depending on the customer’s workspace and application.

Operating System: Windows native. macOS supported through a Windows virtual machine (VM).

Camera-Based Workflow: For horizontal installations, the camera connects to the computer for convenient image capture and digitization. Vertical installations can accommodate handheld or mounted camera configurations depending on the setup.

Fractional Digitizing: Supports digitizing patterns larger than the available working area by capturing them in sections and combining the resulting digital pattern.

Technical Support: 6 months of technical support including remote access, phone, and video conferencing.

Warranty: 1-year parts warranty: Covers defective hardware components during the first 12 months, subject to the applicable warranty terms.

Financing: Available through TimePayment.

Simplify Pattern Digitization

Turn physical patterns into accurate digital assets and streamline the path from pattern development to production.

The V-Shoot Camera Digitizing System helps manufacturers digitize patterns, reduce manual work, improve pattern traceability, and integrate physical pattern development into an existing digital workflow.

V-Shoot Resources

Explore our guides and resources to better understand industrial plotters, marker plotters, plotter cutters, CAD workflows, production speeds, and equipment selection.

V-Shoot System: 2026 Guide

Get answers

Frequently Asked Questions

What does a V-Shoot system include?

The essential components of the V-Shoot system are the software and the V-Shoot board. The camera is an optional accessory, as some clients may prefer using their own devices for photo capture. If the camera needs to be mounted above the board for automatic photo capture, a “tethering” feature is required, which is commonly supported by most DSLR cameras.

Can V-Shoot be used without the board?

The V-Shoot system can only function without its original board when photos are obtained through a scanner. In this case, V-Shoot software reads the image parameters to calculate the pattern measurements accurately. However, when using a camera or mobile phone to capture images, the V-Shoot board is essential to achieving optimal precision. Our boards are specially designed with precisely printed white circles along the edges, which are utilized by the software to correct optical distortions and ensure accurate pattern dimensions in full scale.

What accuracy can I expect?

For V-Shoot boards under 79 inches in size, the accuracy is within 0.039″. With XL boards, the accuracy is within 0.079″. For sub-millimeter accuracy, our 35″ × 24″ board provides exceptional precision. Alternatively, if you use a scanner to acquire images, V-Shoot ensures high precision (<0.020″) for smaller patterns.

Is V-Shoot compatible with my existing CAD programs and CNC machines?

Yes, V-Shoot supports configurable file formats like DXF, AAMA DXF and HPGL, making it easy to import your digitized patterns directly into your existing CAD software and CNC machines. You can adjust the layer structure and eliminate unnecessary pattern components as required.

Can I run V-Shoot on macOS?

Yes, you can run V-Shoot on macOS, but it requires a Windows virtual machine (VM) for compatibility.

Is the V-Shoot system calibration-free?

V-Shoot automatically calibrates your system using the printed circles on the board, adjusting for environmental factors such as distance, angle, lighting, and blur. This results in consistently accurate measurements at a 1:1 scale. No pre-installation calibration is necessary, allowing for easy setup and relocation. Additionally, since each image is calibrated in the background, the camera does not need to remain fixed in relation to the board, enabling the option to use a hand-held camera.

How does the V-Shoot camera system work?

Place the pattern on the magnetic board.
The camera captures a high-resolution image.
V-Shoot software automatically vectorizes the pattern and exports it in DXF, AAMA DXF, or PLT formats, which are compatible with leading CAD software.

What advantages does V-Shoot offer over traditional digitizing methods?

Speed: Automatic image capture and vectorization in seconds.
No ongoing calibration: One-time setup during installation.
File versatility: Export files in DXF, AAMA DXF, and PLT formats.
Accuracy: Minimizes manual errors during production.

What types of materials and patterns can be digitized?

V-Shoot can digitize patterns of any size, material, or color. Whether you’re working with paper, cardboard, textiles, or technical fabrics, V-Shoot accommodates them all. The magnetic board ensures quick and secure fixation without the need for tape, making it ideal for all types of design work.

What makes V-Shoot easy to use?

Magnetic board with quick-grip buttons for easy and secure placement.
Automatic vectorization: No need for manual marking of points.
Direct export of edit-ready files for CAD adjustments, including notches, perforations, or mirrored shapes.

Is V-Shoot compatible with other design and cutting systems?

Yes, V-Shoot is fully compatible with all major CAD systems used across industries such as fashion, furniture, automotive, and industrial design. The exported, DXF, AAMA DXF and PLT files can be seamlessly integrated into your existing workflow with no additional setup required.

What warranty is offered for the V-Shoot Pattern Digitizing Camera?

The V-Shoot digitizing system includes:

1-year parts warranty, covering the full replacement of defective hardware.
3 months of remote technical support, available through video conferencing, phone calls, or remote desktop connection for expert assistance.

Do you offer financing options or plans?

Yes, you can apply for financing through TimePayment to purchase this solution. Click the button below and fill out the form with the requested information.
