High-Speed Marker Plotter for Production
Precision, speed, and reliability for high-volume marker plotting

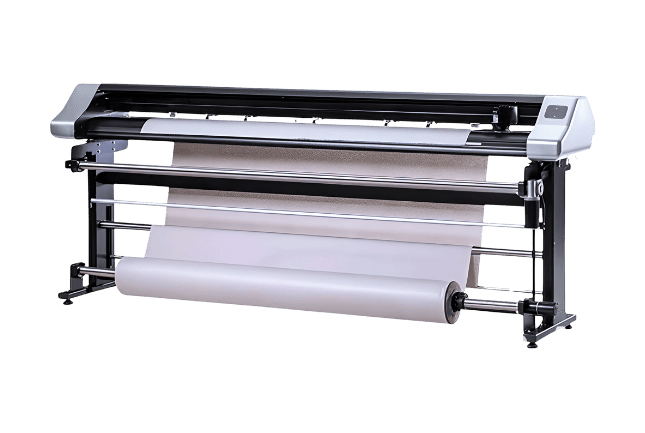

The Velocity Vector One is a single-head industrial marker plotter designed for garment, textile, and pattern production. Available in multiple widths, including 66″ (Vector 1600), 72″ (Vector 1800), and 88″ (Vector 2400), it provides consistent marker plotting for manufacturers with different production requirements and workflows.
With printing speeds of up to 50 square yards per hour, CAD software compatibility, and long-run paper handling capabilities, the Vector One is designed to support efficient marker production in demanding manufacturing environments.
Key Features
High-Speed Marker Plotting
Achieve printing speeds of up to 50 square yards per hour, providing consistent marker output for production environments where speed and reliability are important.
Multiple Width Options
The Vector One is available in different configurations to accommodate various marker sizes and production requirements, with print widths of 66″, 72″, and 88″ depending on the model.
Long-Run Marker Production
The integrated take-up bar system collects printed markers during continuous production runs of up to 500 yards, making the Vector One suitable for extended marker printing without frequent manual handling.
Flexible Paper Handling
The Vector One supports 30 lb to 35 lb paper with a 3-inch core, while recommended paper widths vary by model. Optional floor plotting is available for shorter marker runs of approximately 5 to 10 yards.
Consistent Print Quality
The Vector One produces clear and consistent marker lines, notches, and pattern information across long production runs. This helps maintain reliable output for cutting preparation and downstream garment production.
CAD Software Compatibility
The Vector One works with major CAD systems used in garment and textile production, including Gerber AccuMark, Optitex, Audaces, TukaTech, PAD System, StyleCAD, Lectra, Vetigraph, and Crea.
USB and Ethernet Connectivity
USB and LAN (Ethernet) connectivity provide flexible options for transferring plotting files and integrating the Vector One into local production or design networks.
Single-Head Configuration
The Vector One uses a single-head configuration designed for reliable daily marker production. Manufacturers requiring higher throughput can also explore the Vector Two and Vector Four configurations in the Velocity Vector family.
Technical Specifications
Configuration: Single-head marker plotter
Print Width: 66″, 72″, and 88″ depending on model
Printing Speed: Up to 50 yd²/h (42 m²/hr)
Vector 1600 One Paper Widths: 60″, 63″, 66″
Vector 1800 One Paper Widths: 60″, 63″, 66″, 70″, 72″
Vector 2400 One Paper Widths: 60″, 63″, 66″, 72″, 86, 88″
Paper Weight: 30 lb – 35 lb (refers to paper thickness)
Paper Core: 3-inch tube
Continuous Run Capacity: Up to 500 yards
Connectivity: USB and LAN (Ethernet)
Ink Type: HP #45 black ink cartridges
Compatible CAD Software: Gerber AccuMark, Optitex, Audaces, TukaTech, PAD System, StyleCAD, Lectra, Vetigraph, Crea
Warranty: 1-year parts warranty: Any defective components are replaced at no cost within the first 12 months.
3-month labor warranty: Covers labor costs associated with repairs for the first three months.
Installation: Ships unassembled. Velocity Plotters provides support for installation, system commissioning, and operator training to help ensure the machine is ready for production.
Financing: Available through TimePayment
Note: Any CAD or pattern-making software may be used, provided that it can export files in .PLT, .HPG, or .HPGL format, which are compatible with the plotter for printing. If your software cannot export those formats and can only export DXF or DWG files, Velocity Plotters & Cutters offers a conversion program that converts DXF, DXF-AAMA, or DWG files into .PLT or .HPGL format — creating a secure, plotter-compatible printing file. The conversion program is available at an additional cost.
Built for Efficient Marker Production
The Velocity Vector One combines reliable marker plotting, CAD compatibility, and high-speed output for garment and textile production.
Talk with our team to determine the right configuration for your production requirements.
Get answers
Frequently Asked Questions
Does the plotter come assembled?
No, Velocity plotters are not pre-assembled due to shipping and logistical considerations.
However, we ensure that setup is fast, guided, and stress-free. Our technical team provides:
- Step-by-step remote installation support
- Configuration assistance for software and connectivity
- Calibration and first-run testing
- User training on operation and basic maintenance
Whether you’re local or remote, our priority is to ensure your plotter is fully operational from day one—with the guidance and support you need.
What type of ink does it use?
The plotter uses HP #45 black ink cartridges, which are widely available from retailers like Target, OfficeMax, Office Depot, and Amazon. You may also choose to purchase them through Velocity Plotters
What type of paper is recommended for the Vector 1600 One Plotter?
- Plotter paper
- Recommended widths: 60″, 63″, 66″.
- Grammage: 30 WT – 35 WT (refers to paper thickness)
- Core: 3-inch tube
What type of paper is recommended for the Vector 1800 One Plotter?
- Plotter paper
- Recommended widths: 60″, 63″, 66″, 70″, 72″.
- Grammage: 30 WT – 35 WT (refers to paper thickness)
- Core: 3-inch tube
Do you offer financing options or plans?
Yes, you can apply for financing through TimePayment to purchase this solution. Click the button below and fill out the form with the requested information.
