All-in-One Pattern Plotter Cutter
Print, cut, and perforate paper patterns in one workflow

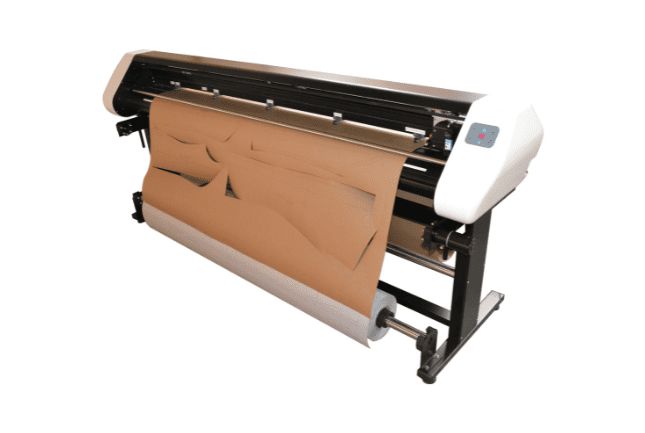

The Velocity Pattern Plotter Cutter is an all-in-one system designed for fashion designers, garment manufacturers, textile professionals, and pattern makers. It combines inkjet printing with precision paper cutting and perforating, allowing users to produce detailed patterns and finished paper templates in a single workflow.
Available in 49″ (1200 Futura) and 64″ (1600 Futura) models, the Pattern Plotter Cutter supports a range of pattern-making applications and integrates with commonly used CAD software. By combining printing and cutting in one machine, it helps reduce manual handling and streamline the process from digital pattern development to physical output.
All-in-One Technology: Print and Cut Without Switching Equipment
The Velocity Pattern Plotter Cutter combines printing, cutting, and perforating in one system. Print vector lines, annotations, technical symbols, and labels, then cut or perforate the paper pattern without repositioning the material or switching between machines.
Key Features
Print, Cut, and Perforate
Print patterns and annotations, then cut or perforate paper in the same workflow. This integrated process helps reduce manual handling and simplifies pattern production.
Two Model Sizes
Choose between the 49″ 1200 Futura and 64″ 1600 Futura models to match your pattern sizes and workspace requirements.
High-Quality Pattern Printing
The system uses HP #45 black ink cartridges to produce clear lines, annotations, and pattern details for accurate pattern development.
Precision Cutting and Perforating
Cut or perforate printed paper patterns with precision, making it easier to separate pattern pieces and prepare templates for production.
CAD Software Compatibility
The Pattern Plotter Cutter works with major CAD systems used in garment, textile, and pattern production, including Gerber AccuMark, Optitex, Audaces, TukaTech, PAD System, StyleCAD, Lectra, Vetigraph, and Crea.
USB and Ethernet Connectivity
USB 2.0 and LAN (Ethernet) connectivity provide flexible options for transferring files from your CAD system or workstation to the Pattern Plotter Cutter.
Need Heavier Materials or Non-Roll Media? Consider the Flatbed Cutter
The Velocity Pattern Plotter Cutter is built for paper-based pattern printing and cutting. If your workflow requires cutting rigid substrates like cardboard, vinyl, PVC, or industrial textiles, the Velocity Flatbed Cutter is the better-suited solution for that type of material.
Pattern Plotter Cutter Technical Specifications
Configuration: All-in-one pattern plotter cutter for printing, cutting, and perforating paper patterns
Available Models: 49″ (1200 Futura) / 64″ (1600 Futura)
Recommended Paper (1200 Futura): Pattern paper (Manila/Tag), Kraft/Brown paper, and plotter paper.
Widths: 36″, 45″, and 54″
Recommended Paper (1600 Futura): Pattern paper (Manila/Tag), Kraft/Brown paper, and plotter paper.
Widths: 55″, 60″, 63″, and 66″
Paper Grammage (1200 Futura): Manila/Tag 100 WT – 120 WT (refers to paper thickness)
Kraft/Brown 40 WT – 45 WT
Plotter paper 35 WT
Paper Grammage (1600 Futura):
Manila/Tag 100 WT–120 WT, 150 WT (refers to paper thickness)
Kraft/Brown 40 WT–45 WT
Plotter paper 35 WT
Paper Core: 3-inch tube
Connectivity: USB 2.0 or LAN (Ethernet)
Ink Type: HP #45 black ink cartridges
Compatible CAD Software: Gerber AccuMark, Optitex, Audaces, TukaTech, PAD System, StyleCAD, Lectra, Vetigraph, Crea
For Rigid Materials: This model handles paper only. For cardboard, vinyl, PVC, or industrial textiles, see the Velocity Flatbed Cutter.
Warranty: 1-year parts warranty: Any defective components are replaced at no cost within the first 12 months.
3-month labor warranty: Covers labor costs associated with repairs for the first three months.
Installation: Ships unassembled. Velocity Plotters provides support for installation, system commissioning, and operator training to help ensure the machine is ready for production.
Financing: Available through TimePayment
Note: Any CAD or pattern-making software may be used, provided that it can export files in .PLT, .HPG, or .HPGL format, which are compatible with the plotter for printing. If your software cannot export those formats and can only export DXF or DWG files, Velocity Plotters & Cutters offers a conversion program that converts DXF, DXF-AAMA, or DWG files into .PLT or .HPGL format — creating a secure, plotter-compatible printing file. The conversion program is available at an additional cost.
Simplify Pattern Production
Combine pattern printing, cutting, and perforating in one workflow with the Velocity Pattern Plotter Cutter.
Talk with our team to determine which model best fits your pattern development and production requirements.
Get answers
Frequently Asked Questions
Does the plotter come assembled?
No, Velocity plotters are not pre-assembled due to shipping and logistical considerations.
However, we ensure that setup is fast, guided, and stress-free. Our technical team provides:
- Step-by-step remote installation support
- Configuration assistance for software and connectivity
- Calibration and first-run testing
- User training on operation and basic maintenance
Whether you’re local or remote, our priority is to ensure your plotter is fully operational from day one—with the guidance and support you need.
What type of ink does it use?
The plotter uses HP #45 black ink cartridges, which are widely available from retailers like Target, OfficeMax, Office Depot, and Amazon. You may also choose to purchase them through Velocity Plotters
What type of paper is recommended for the 1200 Futura (Pattern Plotter Cutter)?
- Pattern paper (Manila / Tag), Kraft / Brown paper, plotter paper
- Recommended widths: 36″, 45″, 54″
- Core: 3-inch tube
- Grammage Manila / Tag: 100 WT – 120 WT, 150 WT (refers to paper thickness).
- Grammage Kraft / Brown: 40 WT – 45 WT (refers to paper thickness).
Plotter paper: 35 WT (refers to paper thickness).
What type of paper is recommended for the 1600 Futura (Pattern Plotter Cutter)?
- Pattern paper (Manila / Tag), Kraft / Brown paper, plotter paper
- Recommended widths: 55″, 60″, 63″, 66″
- Core: 3-inch tube
- Grammage Manila / Tag: 100 WT – 120 WT – 150 WT (refers to paper thickness).
- Grammage Kraft / Brown: 40 WT – 45 WT (refers to paper thickness).
Plotter paper: 35 WT (refers to paper thickness).
What is the difference between the 1200 Futura and 1600 Futura?
The main difference is the machine width. The 1200 Futura is the 49″ model, while the 1600 Futura is the 64″ model, allowing manufacturers to select the configuration that best fits their pattern sizes and production requirements.
Can the Pattern Plotter Cutter print and cut in the same workflow?
Yes. The system combines inkjet printing with paper cutting and perforating, allowing patterns to be printed and then cut or perforated without switching to another machine.
Do you offer financing options or plans?
Yes, you can apply for financing through TimePayment to purchase this solution. Click the button below and fill out the form with the requested information.
